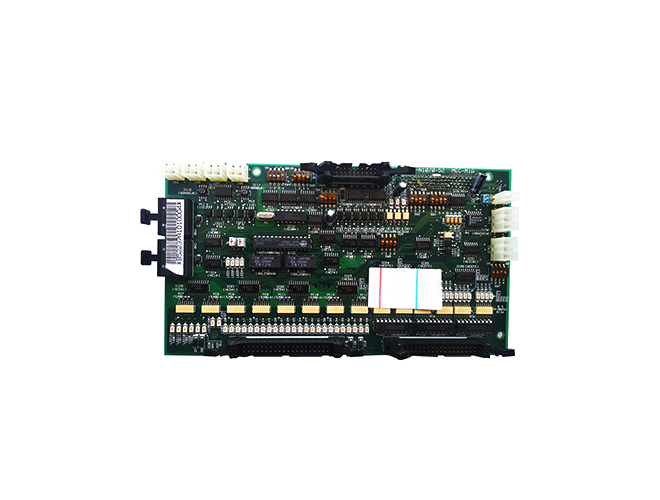

Automated printed circuit board assembly (PCBA) surface mount technology (SMT) processing equipment has revolutionized the electronics manufacturing industry, enabling high - volume, high - quality production with increased efficiency and reduced labor costs. SMT is the dominant method for assembling modern PCBs, as it allows for the precise placement of tiny surface - mount components, such as resistors, capacitors, integrated circuits, and transistors, onto the PCB.

　　The core of automated PCBA SMT processing equipment is the pick - and - place machine. These highly sophisticated machines use robotic arms equipped with vacuum nozzles to pick up components from reels or trays and place them accurately onto the designated pads on the PCB. Advanced pick - and - place machines can achieve placement speeds of tens of thousands of components per hour, with an accuracy of up to a few microns. They are programmed using component placement data from the PCB design files, which specifies the location, orientation, and type of each component. Vision systems are integrated into the pick - and - place machines to ensure precise component alignment. These systems use cameras to capture images of the components and the PCB pads, and algorithms are used to calculate and adjust the placement position in real - time.

　　After component placement, the PCBs are sent through a reflow soldering oven, another crucial piece of automated equipment. The reflow oven subjects the PCBs to a carefully controlled temperature profile, which melts the solder paste pre - applied to the PCB pads, bonding the components to the board. The oven consists of multiple temperature zones, including a pre - heat zone to gradually raise the temperature and prevent thermal shock, a soak zone to ensure even heating, a reflow zone to reach the melting point of the solder paste, and a cooling zone to solidify the solder joints. Advanced reflow ovens can precisely control the temperature and airflow in each zone, ensuring consistent and reliable soldering results.

　　Other automated equipment in the PCBA SMT process includes solder paste printers, which apply a thin layer of solder paste onto the PCB pads with high precision, and automated optical inspection (AOI) and X - ray inspection systems. AOI machines use cameras and image processing algorithms to detect visible defects, such as missing components, misaligned components, and solder bridges, while X - ray inspection can detect hidden defects, such as voids in solder joints or internal shorts. The integration of these automated equipment into a streamlined production line enables seamless and efficient PCBA SMT processing, meeting the high - volume and high - quality demands of the modern electronics market.
