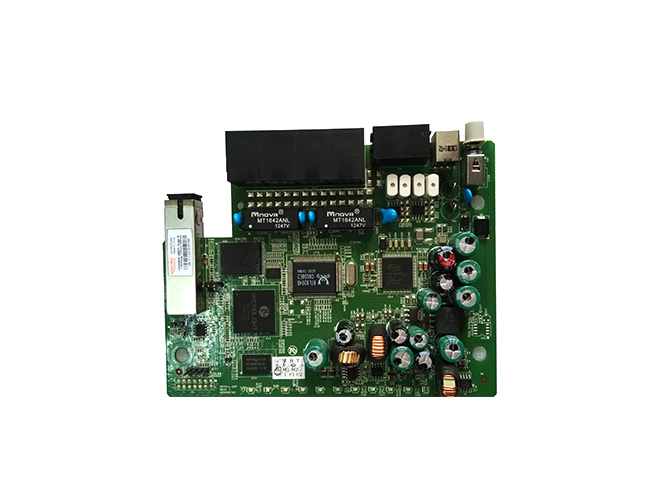

The copper plating process for double - sided printed circuit board (PCB) vias is a critical step in ensuring the electrical connectivity and mechanical strength of the PCB. Vias are holes in the PCB that are used to connect traces on different layers, allowing signals and power to be transmitted between them. Copper plating the vias provides a low - resistance path for electrical current and reinforces the structural integrity of the PCB.

　　The process starts with drilling the vias into the PCB. Specialized drilling machines with high - precision drill bits are used to create holes of the desired size and location on the double - sided PCB. After drilling, the PCB goes through a series of cleaning and preparation steps. The holes are first cleaned to remove any debris, such as copper chips or resin residues, left behind from the drilling process. This is typically done using chemical solutions that dissolve or wash away the contaminants.

　　Next, a thin layer of copper is deposited on the inner walls of the vias and the surface of the PCB. This is usually achieved through a process called electroless copper plating. In electroless copper plating, the PCB is immersed in a chemical bath containing copper ions and reducing agents. The reducing agents react with the copper ions, causing them to deposit as a thin layer of copper on the surface of the PCB and the inner walls of the vias. This initial layer of copper, although thin, provides a conductive base for the subsequent electroplating process.

　　Electroplating is then carried out to increase the thickness of the copper layer in the vias and on the PCB surface. In electroplating, the PCB is placed in an electroplating bath that contains a copper - rich electrolyte solution. An electric current is passed through the solution, with the PCB acting as the cathode. Copper ions from the electrolyte are attracted to the negatively charged PCB and deposit on its surface and the inner walls of the vias, gradually increasing the thickness of the copper layer. The electroplating process is carefully controlled, with parameters such as the current density, plating time, and temperature being monitored and adjusted to achieve the desired copper thickness.

　　After electroplating, the PCB may undergo additional processing steps, such as etching to remove any excess copper and create the desired trace patterns, and surface finishing to protect the copper and improve its solderability. The quality of the copper plating in the vias is crucial. Poorly plated vias can result in high electrical resistance, intermittent connections, or even complete failure of the PCB. Therefore, strict quality control measures are implemented during the copper plating process, including measuring the copper thickness, inspecting for voids or cracks in the plating, and testing the electrical conductivity of the vias. Overall, the copper plating process for double - sided PCB vias is a complex but essential process that contributes significantly to the performance and reliability of the PCB.
